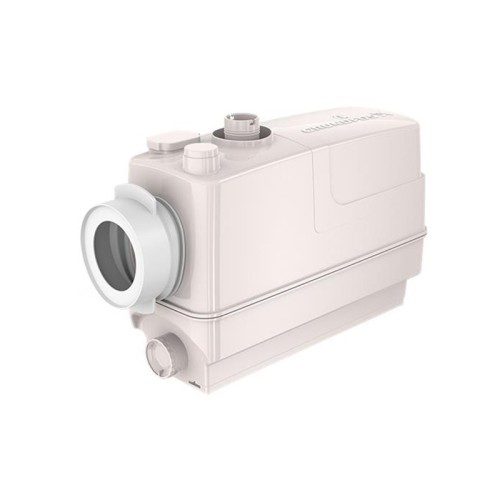

Sololift2 CWC-3 - DRAINAGE PUMP GRUNDFOS

Grundfos SOLOLIFT2 are small, compact, ready-to-install automatic lifting stations with integrated powerful cutter systems. Suitable for pumping wastewater with feces from private dwellings. The unit is designed according to EN 12050-3.

Sololift2 CWC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 CWC-3 is typically used for:

• wall-hung toilets, cabinet showers and washbasins in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 CWC-3 is suitable for installation in a hollow space behind a wall-hung toilet. This lifting station is only suitable for pumping wastewater from a cabinet shower and a washbasin as well as sewage water from a toilet containing toilet paper and faeces. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. The compact lifting station is equipped with

• Cable with or without plug (see technical data)
• Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
• Integrated non return valve
• Dry and high performance motor unit incl. thermal protection, pressure switch and controller
• DN100 toilet connection hose
• Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
• Slot for an alarm board with buzzer (accessory)
• Manual anti clogging function and separate drain connection for service
• Venting valve with overflow protection
• Uplift fixation clips

Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

• warranty: 18 months
• Power: 0.8 HP
• Max. Head: 8.5 m
• Flow Rate: 7 m3/hour
